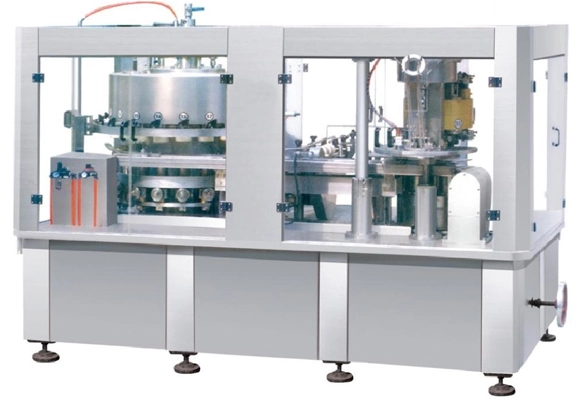

JQ4B250A Filling and Seaming Unit Set is designed and manufactured for Filling and Seaming of Beer and Soft Drink(200ml ~500ml). The advantage for this machine is rapid filling and seaming, and stable performance, it equips the HMI operating screen, and variable frequency control unit, which makes it easy to operate and fast maintenance. This machine is the ideal equipment for soft drink and beer factories.
| Material: | 95% Stainless Steel, 5% Carbon Steel (the Foundation) |
| Seaming Head: | 4 |
| Filling Head: | 20 |
| Production Type: | Liquid-Soft Drink, Beer, Soda water |
| Production Capacity: | 120~150cans/min |
| Filling temperature: | 0~4℃ |
| Can Height: | 70~133mm(Special customized height achievable) |
| Can Diameter: | φ52.3~65.3mm(202#~209#) |
| Motor Power: | 7.5Kw |
| Size: | 3050x1750x2000mm |
| Weight: | 4.5T |
The machine operates through a fully automated filling and sealing process:
1. Pressurized Filling
The system uses a controlled pressure filling method to ensure minimal CO₂ loss during liquid transfer.
2. Liquid Level Control
Advanced sensors maintain consistent filling levels across all cans, improving product uniformity.
3. Lid Feeding System
Automatic lid placement ensures precise alignment before sealing begins.
4. Double Seaming Technology
The can is sealed using a high-precision double seaming mechanism to guarantee airtight packaging.
5. Optional Steam Injection
Steam or vacuum-assisted systems can be integrated to enhance internal can vacuum conditions and extend shelf life.
If you are interested in our food machinery, please contact us. KingQi will get back to you as soon as possible.
