This equipment is a general purpose quantitative cup-type metering filling machine, suitable for the food industry filling grain, beans and other small granular materials.
The equipment adopts fixed-volume single-fixed measuring cup (filling volume adjustment needs to replace the measuring cup) , pull- type switch valve, good sealing performance, equipped with non-tank non-open valve device and other safety protection devices. The equipment is easy to operate, stable operation, high production efficiency, wide range of application, the external surface and the parts in contact with the material are made of 304 stainless steel, in line with food hygiene requirements.
The equipment is driven by frequency control motor, the production capacity can be adjusted, equipped with automatic butter filling system, convenient equipment lubrication.
| Production capacity | ≤250can/min |
| Filling Head | 18 |
| Can Height | 80-150mm |
| Suitable tank diameter | φ52-φ83 |
| Compressed air | 0.4 MPA |
| Main motor power | 1.5 kw |
| Total weight | 1000kg |
| Dimensions | 1650X1750X1900mm |
After the worm gear reducer, the variable frequency speed regulating motor is driven by the driving gear to drive the big gear and the main shaft to rotate, and the main shaft drives the cage tray and the loading and unloading trays to rotate, at the same time by the big gear through the small gear and the universal coupling drive in and out of the tank star wheel, can screw rotation.
The in and out tank conveyer belt is directly driven by the worm gear reducer.
The measuring cup is composed of a single measuring cup and a pull-out switch valve, and the filling quantity is adjusted by changing the measuring cups with different inner diameters. The material to be filled is added to the material drum and falls into the measuring cup by its own weight. When the upper and lower material trays rotate, the material drum is closely attached to the material tray and the material above each measuring cup is brushed as flat.
Empty cans are first fed into the tank by a can-feeding conveyor belt, separated into certain intervals by a can-feeding screw, and then transferred to a can-feeding rotary disk by a can-feeding star wheel. When an empty can passes through a proximity switch following the rotation of a can-feeding rotary disk, the proximity switch sends a signal to the electronic control reversing valve, so that the cylinder is pushed out, so that the opening roller of the pulling valve enters the track of the opening cam, the pulling type is pulled out, and the material in the measuring cup is poured into the empty tank through the lower hopper. Then pull the valve through the valve cam section, the valve will be closed, into the charging section charging, in this cycle for the next measurement operation.
The direction of the machine is facing the equipment, left hand into the can, right hand out of the can. (right hand can be customized)
this machine has high degree of automation, simple and convenient operation.
The installation of this machine is flexible, and can be easily and quickly connected with any conveyor line.
Siemens PLC, touch screen control.
With automatic counting, zero function.
with the function of automatic stop when the tank is blocked.
Transmission parts: high-quality carbon steel gears, high- frequency quenching treatment, high hardness.
Filling valve components: SUS304 stainless steel, Vinylon (high lubricity, high wear resistance)
Barrel components: SUS 304 stainless steel, polytetrafluoroethylene
Open valve components: pneumatic control, SUS304 stainless steel
Conveyor belt components: side panels are SUS304 stainless steel, conveyor chain is POM flat-top chain
Table components: frame is carbon steel structure, exterior SUS304 stainless steel guard plate
In and out pot parts: dial seat SUS304 stainless steel, in and out pot dial, guide plate nylon material, to prevent abrasion can body.
A. Touchscreen: Siemens | b.PLC: Siemens |
C. Inverter: Sine | D. Proximity Switch: Iffy Door |
E. Switching power supply: Ming Wei | F. Relay: Omron |
G. Circuit Breaker: Chint | H. pressure reducing valve: Yadak |
I. Power Switch: Chint | J. Contactor: chint |
K. three-phase motor: Lu'an Xinshun | L. Photoelectric Switch: Bergafo |
M. Cylinders: Yadak | N. solenoid valve: Adder |

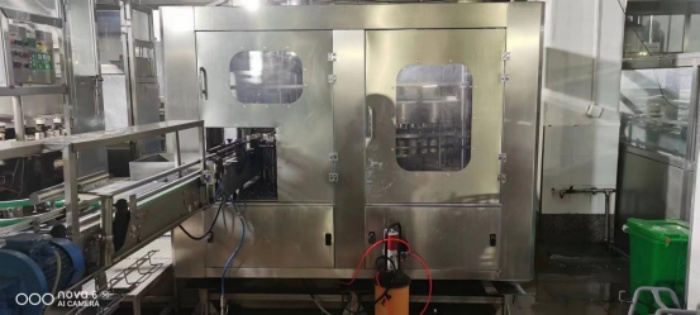

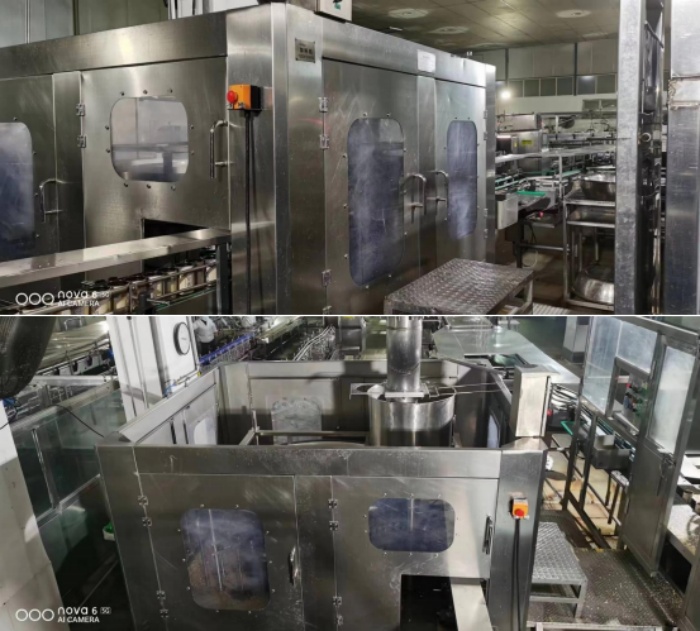

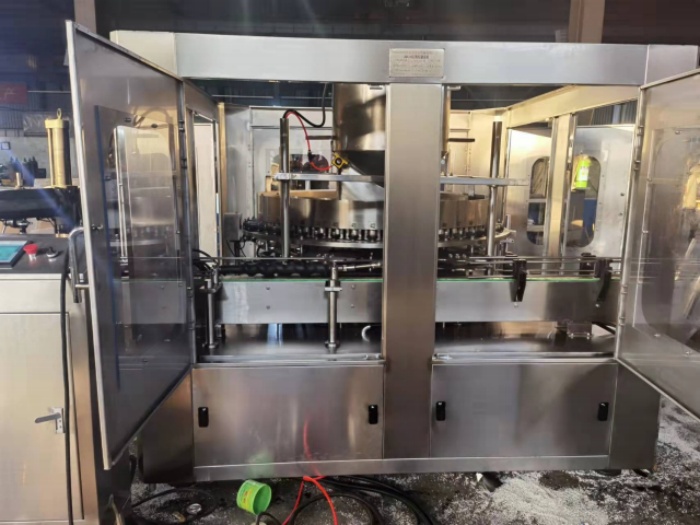

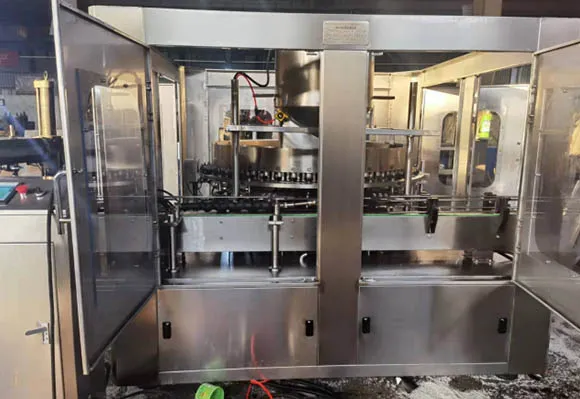

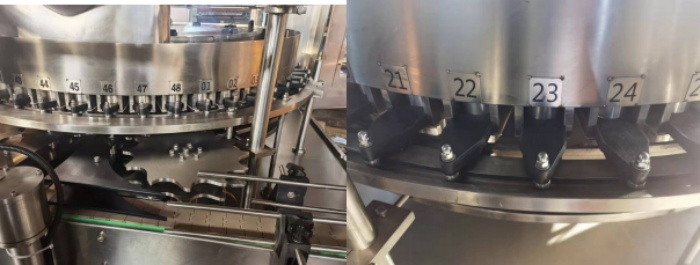

(18 head for the custom version, the picture is 48 head high-speed suction plate type grain filling machine)
If you are interested in our food machinery, please contact us. KingQi will get back to you as soon as possible.
