The operational principle for WYW600 filling liquid level detector is while the filling liquid level raised up, the feedback radiation intensity from low energy photonic source also changed in accordant, from the feedback signal the liquid level can be identified, so that the filling liquid level can be controlled accurately. This technology is highly advance in the world, since it solved the weighting problem in fast running filling line, therefore it has been widely used in Food, Medicine, and Chemical (liquid type) automatic filling line.
| Line speed: | ≤1.8/ms, 50mm diameter Can max speed is 1200Pcs/min |
| Container Diameter: | 20mm~100mm(with different container type and diameter, the device selection difers) |
| Dynamic container resolution ratio: | ±2mm(foam and vibration will effect the accuracy of detection) |
| Static liquid level accuracy: | ≤0.5mm(water) |
| Static liquid level accuracy in 8 hrs: | 0.15mm(water) |
| Unqualified rejection rate: | ≥99%(detecting speed at 1200pcs/min) |
| Temperature tolerance: | in the temperature range of 0~40℃, the tolerance is ≤0.25mm at testing reference temperature 20℃ |
| Working condition: | the minimum time gap is 10ms, also the conveyor must be running at stable condition(any non-steady runing will effect the measure accuracy) |
| Working environment: | temperature 0~40℃, humidity no less than 95% |
| Power source: | 220V±20V, 50Hz |
| Power: | ≤150W |
| Size: | 530mm×150mm×350mm |

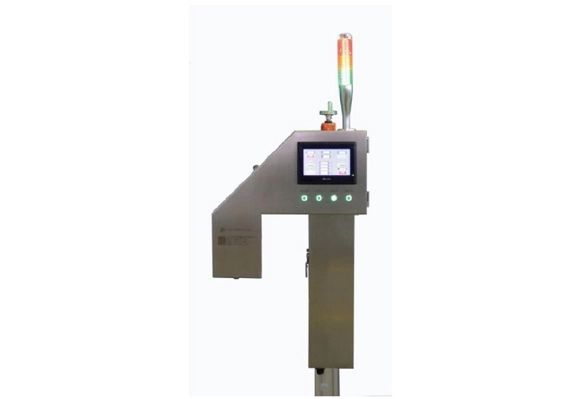

The WY-W600 liquid level detector is a high-precision monitoring system designed for modern filling lines and industrial liquid control applications. Combining advanced sensing technology with stable performance, this intelligent fluid level detector ensures accurate measurement and reliable operation across beverage, pharmaceutical, chemical, and water treatment industries.
The WY-W600 integrates advanced capacitive level sensors to provide accurate and stable water level detection sensor performance. Whether used as a sensor for water level monitoring or a sensor liquid control device in filling lines, it delivers consistent measurement results even in high-speed environments.
As a professional water level detector, the system supports continuous monitoring and functions effectively as a sensor used to detect water level in various liquid containers. The high-sensitivity water level depth detection sensor ensures precise fill-height verification, minimizing under-fill and over-fill risks.
This advanced water level detector is suitable for:
Beverage and bottled water production
Dairy and juice filling lines
Pharmaceutical liquid packaging
Industrial fluid monitoring systems
Water treatment and storage systems
If you are interested in our food machinery, please contact us. KingQi will get back to you as soon as possible.
